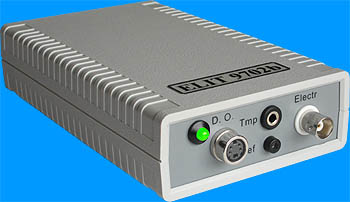

| ELIT
9702b Aqualyser |
- The ELIT
9702b is a dedicated instrument for Monitoring Dissolved
Oxygen, pH / Ion-concentration / ORP and Temperature.
- The 4-way
Mini-DIN connector accepts Galvanic or Polarographic D.O. sensors
with built-in Pt1000 (Pt100) Temperature Sensors.
- A BNC Input
and a 2 mm Reference Input allows the connection of a pH- or
Ion-selective- or ORP-Electrode.
- Two 3.5
mm Input accept a Temperature Sensor with Thermistor Sensor
element.
|
 |
| ELIT
9705b Aqualyser |
- The ELIT
9705b is a dedicated instrument for Monitoring Dissolved
Oxygen, pH / ORP, 3 Ion-concentrations and Temperature.
- The 4-way
Mini-DIN connector accepts Galvanic or Polarographic D.O. sensors
with built-in Pt1000 (Pt100) Temperature Sensor.
- A 4-way
Mode-Switch enables the Optimal Adjustment to the Signal Levels
of different D.O. Sensors.
- 4 BNC Inputs
and 3 of 2 mm Reference Input allow the connection of pH-, Ion-selective-
and ORP-Electrodes.
- Two 3.5
mm Inputs accept Temperature Sensors with PT1000 element (at
T1 Connector input) and Thermistor Sensor element (at T2 Connector
input).
|
 |
| ELIT
9705c Aqualyser |
- The ELIT
9705c is a dedicated instrument for Monitoring Dissolved
Oxygen, pH, ORP, Ion-concentration, Conductivity/Salinity and
Temperature.
- The 4-way
Mini-DIN connector accepts Galvanic or Polarographic D.O. sensors
with built-in Pt1000 (Pt100) Temperature Sensors.
- 3 BNC Inputs
and 2 of 2 mm Reference Input allow the connection of pH-, Ion-selective-
and ORP-Electrodes.
- A 6-way
DIN Connector accepts 2-Electrode Conductivity Sensors with
Cell Constants of K=0.1, K=1, and K=10.
- One 3.5
mm Socket accepts a Temperature Sensor with Thermistor Sensor
element.
|
|
| Description |
- These
Compact and Cost-effective Instruments are suitable for Sample
Measurements and continuous Real-time Monitoring
- Aqualysers
Measure and Monitor important Parameters of Aqueous Solutions
such as Dissolved Oxygen, pH, ORP, Ion Concentration, Conductivity
and Temperature
- These Analysers
are connected to PCs with MS Windows operating systems via RS232
or USB Serial Data Transmission

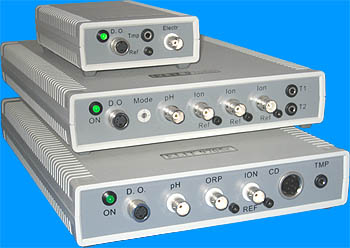

- Aqualysers
are available in 3 different versions, with various Combinations
of Parameters. Details are given below
- Type
9702b monitors Dissolved Oxygen, pH or ORP or 1 Ion-Concentration
(all types of Ion-Selective Sensors can be used) and Temperature
- Type
9705b monitors Dissolved Oxygen, pH or ORP, 3 Ion-Concentrations
(all types of Ion-Selective Sensors can be used), and Temperature
- Type
9705c monitors Dissolved Oxygen, pH, ORP, 1 Ion-Concentrations
(all types of Ion-Selective Sensors can be used), Conductivity
(Salinity) and Temperature
- Each Aqualyser
comes with a Software (see Screen Printout),
which enables the user to Calibrate, Display and Store the Sensor
Signals and the resulting Parameter Values
- The Data
Acquisition Rate can be selected over a wide range
- The Data
are stored in Text form and can be viewed, edited or exported
to Excel or any other Software
|
|
| Features |
- Suitable
for Sample Measurements and
continuous Real-time Monitoring
- Compact
Unit for Monitoring all important Water Parameters
- User-friendly
Software for MS Windows
- Ideal for
Research Projects
- Suitable
for Education and Training
- Mainly
for Laboratory and Indoor Applications
|
| Application Examples |
- Water
Quality Analysis
- Environmental
Control
- Food and
Drink Quality Control
- Pharmaceutical
Research
- Aquacultural
Research
- Agricultural
Research
- BioReactors
and Fermentors
…………and
many more
|
| Hardware Specifications |
- Dimensions
& Weight:
Type 9702b:
Dimensions: Length- 160 mm, Width- 95 mm and
Height-
36 mm
Weight: 300 g
Type 9705b and 9705c:
Dimensions: Length- 280 mm, Width- 200 mm and
Height- 40 mm
Weight: 700 g
- Enclosure
Material: ABS
- Protection
Class:
IP62 / NEMA2
- Power
Supply: 6 to 9V DC, less than 100 mA from country-specific
Mains Power Adaptor or Battery Power Pack.
- Connection
to the Computer: 2m Serial Data Cable with 9-way Connector
for RS232 or USB (optional)
- Sensor
Connections:
BNC Connectors for pH-, ORP- and Ion-selective Electrodes.
2 mm Connector for Reference Electrodes.
4-way socket Mini-DIN Connector for Dissolved Oxygen. Sensors,
with or without built-in Temperature Sensor.
6-way socket DIN Connector for 2-Electrode Conductivity Cell.
Isolated 3.5 mm Mono-Audio Connector for Temperature Sensor.
- Isolation:
The Sensor Amplifiers are fully galvanically isolated from the
Communication and Power Supply
- Sensor
Amplifiers: High Quality Electrode Amplifiers with Input
Resistance higher than 1 Terra Ohm and Bias Current less than
1 Pico Ampere.
- Sensors:
Accepts practically all Types of pH-, ORP- and Ion-selective
Electrodes.
Suitable for Galvanic and Polarographic Dissolved Oxygen Sensors.
Please specify Type and Make of the preferred sensor.
Suitable for 2-Electrode Conductivity Cells with K=0.1, K=1,
and K=10 Cell constants.
Temperature Sensor with PT1000 or Thermistor sensor element.
- Measuring
Range and Resolution:
pH Range: 0 to 14, Resolution: 0.01 pH unit
ORP Range: -1000 to +1000 mV, Resolution: 0.1 mV
Ion-Concentration: depending on the Electrode, all types
of Electrodes can be connected
Dissolved Oxygen: depending on the Sensor, most types
of D.O. Sensors can be connected
Conductivity Range: 1 µS to 20 mS, Resolution:
better 0.5% depending on the range
Temperature Range: 0 to 100°C, Resolution 0.1°C
|
| Software
Specifications |
- The
supplied Software runs under MS Windows Operating Systems:
ME, 2000, XP, Vista and Win7.
- Mode
of Operation: Manual (single Measurement) and Automatic
(continuous Monitoring).
- Measurement
Interval (Sampling Time): selectable from 1 Second up to
1 Hour.
Monitoring Time Limit can be set.
- Gliding
Average Filter: can be set from averaging 1 to 10 samples.
- Automatic
Temperature Compensation for pH measurements available.
- Multi-point
Calibration Facility
- Measurements
are Date and Time stamped
- Measurments
are displayed in Real-time in Table format
- Measurement
Data are stored on Hard disk
- Data can
be retrieved, viewed and exported to many other Software packages
- Data are
in Text form using ASCII Characters
|
|
