| Fig.
1: Battery Powered pH / ORP / Ion
Sensor Amplifier |
| Fig.
2: Battery Powered D.O.
Sensor Amplifier |
| Fig.
3: Battery Powered Amplifier for pH / ORP / Ion and Temperature |
| |
| Fig.
4: Battery Powered Amplifier for Dissolved Oxygen and Temperature |
| |
|

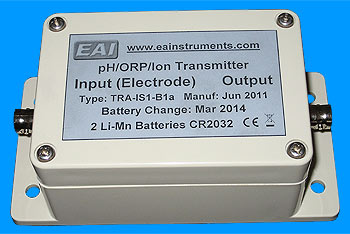

| Battery
Powered pH / ORP / Ion Sensor Amplifier |
| TRA-IS1-B1a
(See
Fig.1) |
Input:
pH-,
ORP-, Ion-Selective Electrode via BNC Connector.
Output:
Voltage Signal via BNC Connector (Refer to Transfer Function below).
Power Supply:
For Transfer Functions with an output range up to ±3000 mV
and 4 Li-Mn batteries, CR 2032 will power the unit for 3 years.
Number
of Channels: 1 Channel (Electrode)
Isolation:
Input Ground directly connected to Output Ground.
If Galvanic Isolation is required it has to be provided on the receiving
side.
Enclosure:
Cream colour ABS, dimensions: 100 x 68 x 50 mm with two 15 mm
flanges (the flanges have four 5.5 mm fixing holes), IP 65 / NEMA
4.
Transfer Function:
Variant a: 1 to 1 Input to Output transfer.
Variant
b:
1 to 5 Input to Output transfer, which gives higher accuracy and
noise-immunity for Ion-selective measurements. |
| |
| Battery
Powered D.O. Sensor Amplifier |
| TRA-DO1-B1a
(See
Fig.2) |
Input:
Galvanic Dissolved Oxygen Sensor
via 4-way Mini DIN Connector.
Output:
Voltage signal
via BNC Connector (Refer
to Transfer Function below).
Power
Supply: For Transfer Functions with an output range up
to ±3000 mV and 4 Li-Mn batteries, CR 2032 will power the
unit for 6 months.
Number
of Channels: 1 Channel (Galvanic D.O.
Sensor).
Isolation:
Input Ground directly connected to Output Ground.
If Galvanic Isolation is required it has to be provided on the receiving
side.
Enclosure:
Cream colour ABS, dimensions: 100 x 68 x 50 mm with two 15 mm
flanges (the flanges have four 5.5 mm fixing holes), IP 65 / NEMA
4.
Transfer
Function: 0 to 10 µA Input
range corresponds to
0 to +1000 mV at the Output. |
| |

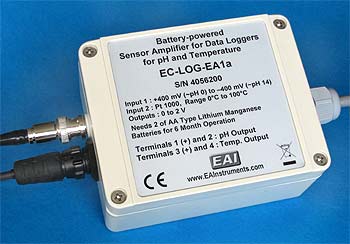

| Battery
Powered pH / ORP / Ion and Temperature Sensor Amplifier |
| EC-LOG-EA1A
(See
Fig.3) |
Input:
pH-, ORP-, Ion-selective Electrode via
BNC Connector.Temperature Sensor via special connector.
Output:
Voltage signal via PCB Terminals. IP 65 Cable Glands
for Cable Entry.
Power
Supply: 2 Lithium
Manganese Batteries, Size AA, 3 V, 2400 mA, can be stored for 5
years. Batteries last for 6 months operation.
Number
of Channels: 1 Electrode Channel
and 1 Pt1000 Temperature Channel.
Isolation:
Input Ground directly connected
to Output Ground.
Enclosure:
Cream
colour ABS, dimensions: 115 x 90 x 55 mm,
4 fixing holes (4 mm diameter) separated from the compartment,
IP 65 / NEMAY
Transfer
Function: Adjustable
Gain and Offset (especially for Ion measurement)
Electrode Gain: 1:1, 1:2, 1:4, 1:8, maximum Output Voltage ±2000
mV. For a Pt1000 Temperature Sensor the Output Range of 0 to 1000
mV corresponds to 0°C to 100°C. |
| |

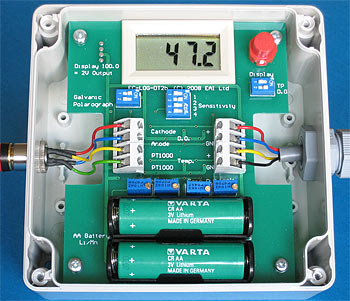

| Battery
Powered Dissolved Oxygen and Temperature Sensor Amplifier |
| EC-LOG-DO1a |
Input:
Galvanic D.O. Sensor with built-in Pt1000
Temperature Sensor via 4-way Mini DIN Connector.
Output:
Voltage signal via PCB Terminals. IP 65 Cable Glands
for Cable Entry.
Power
Supply: 2 Lithium
Manganese Batteries, Size AA, 3 V, 2400 mA, can be stored for 5
years. Batteries last for 6 months operation.
Number
of Channels: 1 Galvanic D.O. Sensor Channel
and 1 Pt1000 Temperature Channel.
Isolation:
Input Ground directly connected
to Output Ground.
Enclosure:
Cream
colour ABS, dimensions:120 x 120 x 57 mm,
4 fixing holes (4 mm diameter) separated from the compartment,
IP 65 / NEMAY.
Transfer
Function: Adjustable
Gain: 1000 mV Output for 100 nA, 500 nA, 2 µA, 10 µA.
For a Pt1000 Temperature Sensor the Output of 0 to 1000 mV corresponds
to 0°C
to 100°C.
Special Versions: versions for Polarographic D.O. Sensors are available,
please provide Sensor data. |
|
